Insta360 Ace Pro 2 vs DJI Action 6: Flip Screen vs Square Sensor

The Insta360 Ace Pro 2 vs DJI Action 6 comparison represents two different solutions to modern content creation: Insta360's flip screen for perfect self-framing versus DJI's square sensor for effortless horizontal/vertical switching. Now that Action 6 is officially available and Ace Pro 3 is likely coming, which should you buy—or should you wait?

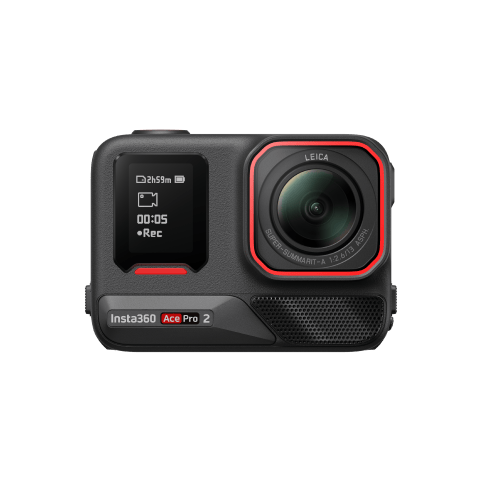

Insta360 Ace Pro 2

Insta360 Ace Pro 2

Insta360

$449

DJI Osmo Action 6

DJI Osmo Action 6

DJI

$399

Spec	Insta360 Ace Pro 2	DJI Osmo Action 6
Screen	Front: 1.4 inches OLED Back: 2.5 inches OLED Flip Touchscreen	Front: 1.46 inches OLED, 342×342, 800 cd/㎡ Back: 2.5 inches OLED, 400×712, 800 cd/㎡, 1000 cd/㎡ peak
Microphones	3 Stereo Recording	3
Weight	177 g	149 g
Dimensions	71.9×52.15×38.5 mm (L×W×H)	72.8×47.2×33.1 mm (L×W×H)
Sensor	1/1.3-inch CMOS	1/1.1-inch square CMOS
Aperture	f/2.6	f/2.0 - f/4.0 Variable
ISO Range	100-6400	100-12800 (Photo) 100-25600 (Video) 100-51200 (Video, SuperNight Mode Only)
FOV	157° (13 mm equivalent)	155°
Photo Resolution	4:3, 8192 × 6144 (50 MP)	7168 × 5376 (38 MP)
Video Resolution	8K: 7680×4320 @30/25/24fps 4K: 3840×2160 @120/60/50/30/25/24fps 2.7K: 2720×1530 @120/60/50/30/25/24fps 1080p: 1920×1080 @240/120/60/50/30/25/24fps	4K (16:9): 3840×2160 @24/25/30/48/50/60/100/120fps 4K (16:9): 3840 × 2160@24/25/30/48/50/60fps (SuperNight Mode) 2.7K (16:9): 2688×1512 @120fps 1080p (16:9): 1920×1080 @240fps Free Crop (1:1): Up to 4K @60fps
Video Bitrate	180 Mbps	120 Mbps
Video Codec	H.264/H.265	H.265
Log Profile	I-Log	10-bit D-Log M
Video Format	MP4	MP4 (H.265)
Audio Recording	48 kHz 16-bit; AAC	48 kHz 16-bit; AAC
Stabilization	FlowState Stabilization	RockSteady 3.0+, HorizonBalancing, HorizonSteady
Waterproof	12 m underwater	20 m (without Waterproof Case) 60m (with Waterproof Case)
Battery	1800 mAh	Capacity: 1950 mAh; Energy: 7.5 Wh; Voltage: 3.87 V
Operating Time	180 mins (1080P/24fps)	195mins (4K/30fps video) 240 mins (1080p/24fps 16:9 video)
Charge Time	47 mins to 100%	25 mins to 80%, 50 mins to 100%
Storage	External microSD up to 1 TB	Built-in 50GB (105GB available) External microSD up to 1 TB
Wi‑Fi	Wi-Fi 5 (802.11 ax); 2.4/5 GHz	Wi-Fi 6 (802.11 a/b/g/n/ac/ax); 2.4/5.1/5.8 GHz
Bluetooth	BLE 5.2	BLE 5.1
Ports	USB-C 3.0	USB-C 3.1
App Support	Insta360 App	DJI Mimo
AI Highlight Assistant	Yes	—
Flip Screen	Yes	—
Pre-recording	—	5/10/15/30 s; 1/2/5 mins
Square Sensor	—	Horizontal/vertical switching without rotation
Free Crop Mode	—	1:1 recording up to 4K 60fps
Built-in Filters	—	Style presets (up to 4K 60fps 16:9)
Gesture Control	—	Hand gesture start/stop
DJI Mic Support	—	Up to 2 transmitters direct connection

The Core Difference: Flip Screen vs Square Sensor

Insta360 Ace Pro 2: Flip Screen for Self-Shooting

The defining feature: 2.5" OLED flip screen that rotates to face you

Why it matters for vloggers:

When shooting yourself, the flip screen is invaluable:

• See exactly what's in frame
• Check focus and exposure in real-time
• Monitor your performance while recording
• Eliminate the "hope it's framed right" uncertainty
• Reduce reshoots and wasted footage

Real-world benefit: Mounting the camera on handlebars, helmet, or chest mount? Flip the screen and know exactly what you're recording. No guessing, no phone preview needed.

Trade-offs:

• Adds mechanical complexity (one more thing to break)
• Makes camera slightly heavier (177g vs Action 6's 149g)
• Screen hinge could be vulnerable in crashes

DJI Action 6: Square Sensor for Multi-Format Flexibility

The defining feature: 1/1.1" square sensor that records horizontal and vertical simultaneously

Why it matters for multi-platform creators:

With traditional cameras, switching between horizontal (YouTube) and vertical (TikTok/Reels) means physically rotating the camera—awkward and disruptive. Action 6 solves this:

• Hold camera any orientation (horizontal, vertical, sideways)
• Tap button to switch output between 16:9 and 9:16
• No quality loss when switching formats
• 1:1 Free Crop mode records full square for maximum post flexibility

Real-world benefit: Walking and talking to camera? Hold it comfortably in one position, tap to switch between horizontal for YouTube and vertical for Reels. Your grip never changes.

What Ace Pro 2 can't do:

• Can't switch between horizontal and vertical without rotating
• Must physically reposition camera for different platforms
• Shooting vertical = must hold camera vertically (less comfortable)

Important context: This advantage only matters if you create content for both horizontal AND vertical platforms. If you only shoot one format, it's not relevant.

Which Innovation Matters More?

Flip screen wins for:

• Solo vloggers who primarily self-shoot
• Anyone who mounts cameras in hard-to-reach places
• Creators who need to see themselves while recording
• People who shoot mostly one format (either horizontal OR vertical)

Square sensor wins for:

• Multi-platform creators (YouTube + TikTok/Reels)
• Anyone tired of rotating camera between formats
• Creators who want maximum post-production flexibility
• People who shoot both horizontal and vertical regularly

Sensor and Image Quality Comparison

Sensor Sizes

What this means:

Action 6's 1/1.1" sensor is ~20% larger than Ace Pro 2's 1/1.3" sensor—but remember, Action 6's is square, so effective area for 16:9 video is more comparable than it looks.

Daytime Image Quality

In good lighting, both cameras deliver excellent quality:

Winner: Tied (with slight edge to Action 6)

• Both produce sharp, detailed footage in daylight
• Color science is a matter of preference (Insta360 vs DJI style)
• Action 6 slightly sharper due to marginally larger sensor
• Difference is incremental, not dramatic

Reality check: For social media and YouTube, both are excellent in daylight. You won't notice a meaningful quality difference.

Low-Light and Night Performance

This is where specifications translate to real-world differences:

Winner: Action 6 (significant advantage)

Why Action 6 wins:

• f/2.0 aperture (vs Ace Pro 2's f/2.6) = 78% more light
• Larger sensor gathers more light per pixel
• ISO 51200 in SuperNight mode (vs Ace Pro 2's ISO 6400)

Real-world impact:

• Action 6: Cleaner footage at dusk/dawn
• Action 6: Less noise in indoor shooting
• Action 6: Better highlight control (street lights don't blow out)
• Ace Pro 2: Still decent, but noticeably more noisy in challenging light

If you regularly shoot at night or indoors, Action 6's advantage is substantial.

Video Recording Comparison

Important note: Ace Pro 2 has 8K, but Action 6 does not have 8K. Max is 4K @ 120fps.

For most creators: 4K is plenty. 8K is overkill for social media and most YouTube content. Storage and editing overhead often outweigh benefits.

Convenience Features Comparison

Where Ace Pro 2 Excels

Flip screen for self-shooting:

• The killer feature for solo creators
• Perfect framing every time
• Essential for helmet/chest/handlebar mounts
• See yourself while recording

8K recording:

• Maximum resolution for future-proofing
• Extreme cropping flexibility in post
• Though 4K is sufficient for most use cases

Where Action 6 Excels

Square sensor for multi-platform:

• Effortless horizontal/vertical switching
• Hold camera any orientation
• 1:1 Free Crop mode for maximum flexibility

Night performance:

• Significantly better in low light
• f/2.0 aperture gathers 78% more light
• Less noise, better highlight control

Workflow features:

• Built-in style filters (skip color grading)
• Gesture control (hands-free start/stop)
• Direct DJI Mic support (no receiver needed)

Pricing and Value

Value analysis:

Action 6 is $50 cheaper while offering:

• Better low-light performance
• Square sensor flexibility
• More convenience features

Ace Pro 2 justifies the premium with:

• Flip screen (invaluable for self-shooting)
• 8K recording (though 4K is usually sufficient)
• Proven track record

The Ace Pro 3 Question: Should You Wait?

Important context: DJI released Action 6 in November 2025. Insta360 typically responds to DJI launches. Ace Pro 3 is likely coming soon.

Why Ace Pro 3 Might Be Worth Waiting For

What Insta360 needs to match:

• Square sensor or similar multi-format solution
• Better low-light performance (larger aperture or sensor)
• Keep flip screen advantage
• Match or beat Action 6's night capability

If Insta360 delivers: Ace Pro 3 could combine flip screen convenience with square sensor flexibility—best of both worlds.

Why You Might Not Want to Wait

Waiting downsides:

• Ace Pro 3 timing is uncertain (could be 3-6+ months)
• Ace Pro 2 is proven and available now
• Missing content opportunities while waiting
• Ace Pro 3 might be more expensive

Unknown factors:

• Will Ace Pro 3 actually have square sensor?
• What will pricing be?
• Will it address low-light concerns?

Wait-or-Buy Decision Framework

Buy Action 6 Now ($399) If:

✅ You need a camera immediately ✅ You create content for both YouTube AND Instagram/TikTok

• Square sensor eliminates the rotation hassle ✅ You shoot at night or indoors frequently
• Significantly better low-light than Ace Pro 2 ✅ You value convenience features
• Gesture control, built-in filters, DJI Mic support ✅ You don't need flip screen
• Can frame shots with front screen or phone preview

Buy Ace Pro 2 Now ($449) If:

✅ Flip screen is non-negotiable

• Solo shooting, helmet/bike mounts require self-monitoring ✅ You primarily shoot one format
• Square sensor advantage doesn't apply ✅ You want 8K (though 4K is sufficient for most) ✅ You don't shoot at night
• Low-light advantage of Action 6 not relevant

Wait for Ace Pro 3 If:

⏸️ You want flip screen AND square sensor

• Ace Pro 3 might deliver both ⏸️ You can afford to wait 3-6 months
• No urgent content projects ⏸️ You want to see what Insta360's response is
• Let DJI show their cards first, see Insta360's answer

Smart Strategies

Can't decide? Buy a used Action 5 Pro ($250-280):

• Shoot for 6 months while market settles
• See what Ace Pro 3 delivers
• Sell and upgrade with minimal loss

Need camera now but want Ace Pro 3? Buy Action 6:

• Proven excellent camera available today
• Create content instead of waiting
• Sell for ~$300 when Ace Pro 3 launches if it's better
• Net cost of using Action 6: ~$100 for 6 months of use

Battery Life Comparison

Reality: Both require 2-3 spare batteries for all-day shooting. Battery life is similar in practice.

Stabilization: Both Excellent

Winner: Tied

Both cameras offer excellent stabilization:

• Ace Pro 2: FlowState Stabilization with 360º Horizon Lock
• Action 6: RockSteady 3.0+ with HorizonSteady (4K support)

In practice, both deliver smooth footage for action sports and walking. The difference is negligible for most users.

Use Case Winners

Solo Vlogging: Ace Pro 2

• Flip screen is invaluable for self-shooting
• See yourself while recording = fewer reshoots

Multi-Platform Content: Action 6

• Square sensor eliminates rotation hassle
• Create YouTube + Instagram content effortlessly

Night/Indoor Shooting: Action 6

• f/2.0 aperture significantly better in low light
• Less noise, better highlight control

Action Sports with Helmet Mount: Ace Pro 2

• Flip screen lets you monitor framing on helmet
• Critical when camera is hard to reach

Multi-Format Creators: Action 6

• 1:1 Free Crop mode gives maximum flexibility
• Switch between platforms without compromise

Final Verdict: What Should You Buy?

The Clear Answer: It Depends on Your Priority

If flip screen is essential: Buy Ace Pro 2 ($449)

• Nothing beats seeing yourself while recording
• Proven, available, excellent camera today

If multi-platform flexibility matters: Buy Action 6 ($399)

• Square sensor eliminates so much hassle
• Better night performance is bonus
• $50 cheaper than Ace Pro 2

If you want the best of both: Wait for Ace Pro 3

• DJI showed their hand with Action 6
• Insta360 will likely respond with flip screen + square sensor
• Risk: Unknown timing (3-6+ months?) and pricing

The Waiting Game Strategy

Ace Pro 3 timing is uncertain. Here's what makes sense:

1. Need camera now? Buy Action 6 ($399)

   • Create content immediately
   • Sell for ~$300 when Ace Pro 3 launches
   • Net cost: ~$100 for 6 months of use

2. Can wait 3-6 months? Wait for Ace Pro 3

   • See if Insta360 delivers flip screen + square sensor
   • Might be the perfect camera

3. Budget-conscious? Buy used Action 5 Pro ($250-280)

   • Excellent camera at great price
   • Bridge gap until market settles

Bottom Line

Action 6 wins on: Price ($399), night performance, square sensor flexibility, convenience features

Ace Pro 2 wins on: Flip screen (huge for self-shooting), 8K recording, proven track record

The honest take: These are both excellent cameras solving different problems. Choose based on whether flip screen or square sensor matters more to YOUR workflow.

Most versatile choice: Action 6 at $399 delivers more value for more creators. But if you're a solo vlogger who needs flip screen, Ace Pro 2 justifies the $50 premium.

Smartest play: Wait to see what Ace Pro 3 delivers. DJI made their move—now it's Insta360's turn to respond.
